Freescan Combo Series

Compact and Powerful Metrology

It packs a dual light source in an ultra-compact shell measuring just 193 x 63 x 53 mm. Equipped with both blue laser and infrared VCSEL technology, it weighs only 620 g.

Metrology-Grade Accuracy

Accuracy of 0.02 mm ensures consistent scanning results with high precision.

Versatile Dual Light Scanning

An innovative combination of blue laser and infrared light sources meets the needs of various industrial 3D scanning scenarios.

Multiple Scanning Modes

Up to 25 cross laser lines for rapid scanning of large objects, 7 parallel laser lines for fine details, and a single laser line for deep holes and pocket area scanning.

Lightweight and Compact

The lightweight and ergonomic design of the Combo Series allows for use in a variety of narrow and complex environments.

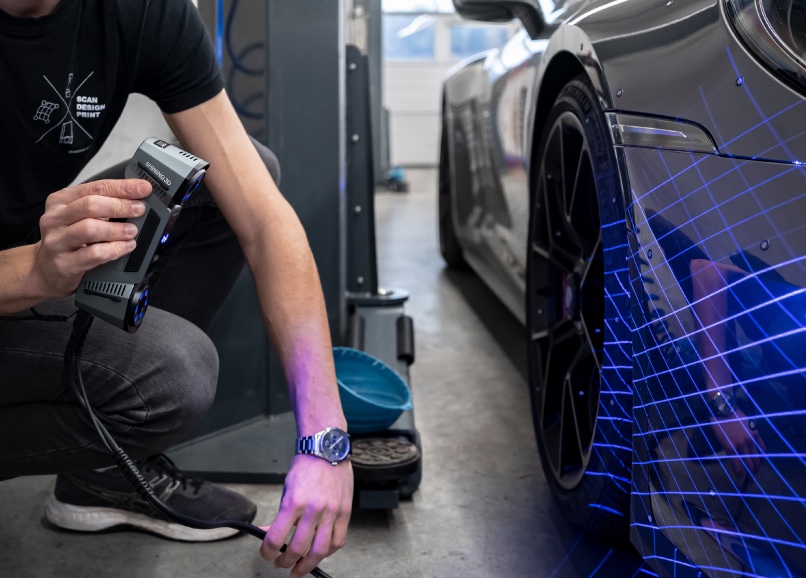

Blue Laser and Infrared Light

An innovative combination of blue laser and infrared light provides accurate results in various scenarios, enhancing both efficiency and quality.

Blue Laser and Infrared Light

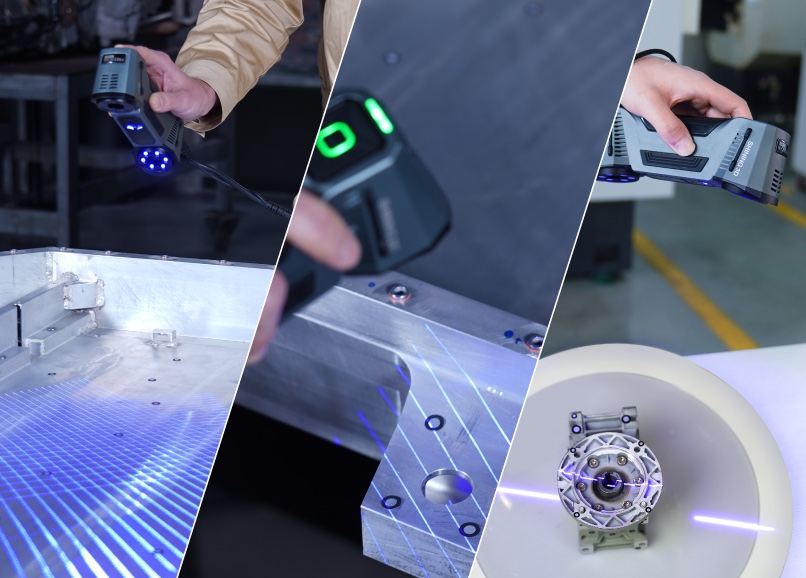

Four 3D Scanning Modes to Cover All Workpieces

Four 3D Scanning Modes
  • •Multiple line mode with 26 (FreeScan Combo) or 50 (FreeScan Combo+) laser lines for general scans
  • •Fine scan mode with 7 parallel laser lines to capture complex details
  • •Deep hole scanning mode with 1 single laser line
  • •Infrared light mode for rapid scans without markers

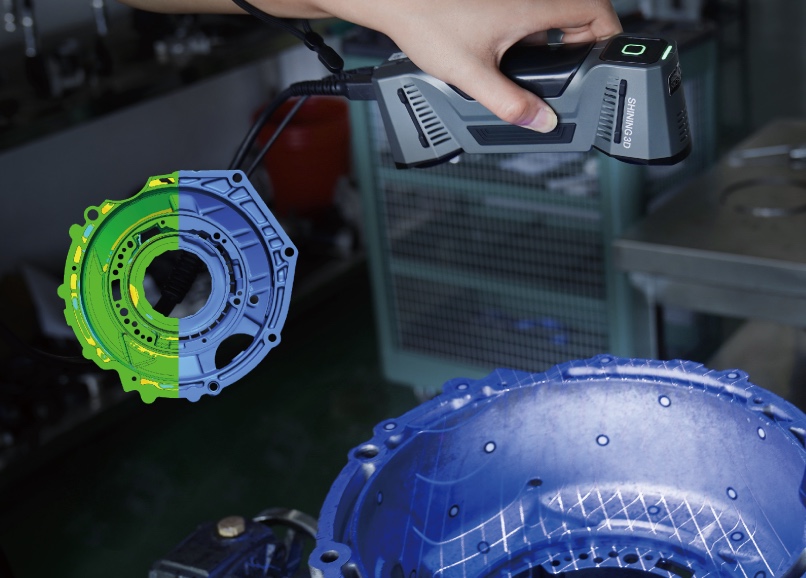

A Smart Choice for Metrology

The laser scanning modes of the FreeScan Combo Series can achieve 0.02 mm* industrial-grade accuracy, making it ideal for metrology applications.

*Based on VDI/VDE 2634, the sphere-spacing error is evaluated with traceable length artifacts and markers by measuring at different positions and orientations within the working volume in an ISO/IEC 17025 certified accuracy laboratory under environmental conditions: temperature 20 ± 0.5°C; humidity 40 ~ 60% RH.

A Smart Choice for Metrology

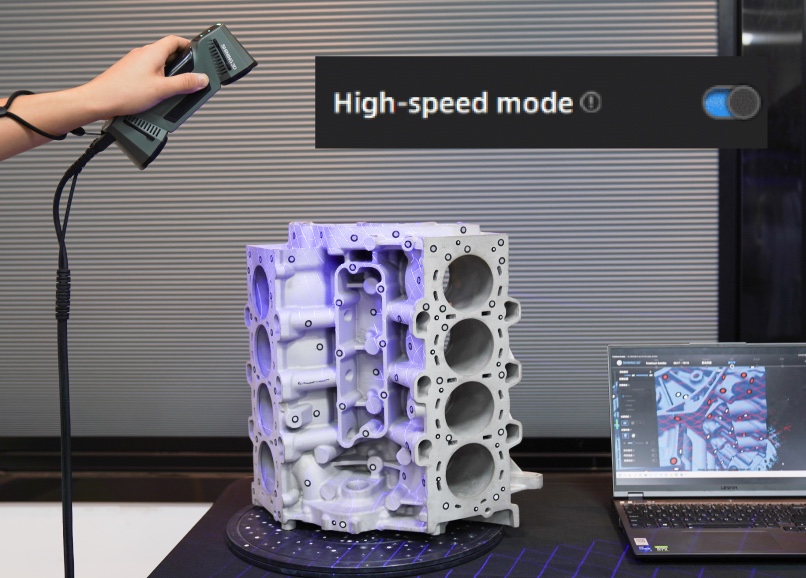

Fast Scanning Speed

Fast Scanning Speed

Multiple line mode projects up to 50 laser lines (FreeScan Combo+ version) and scans at speeds up to 3,600,000 points/sec.

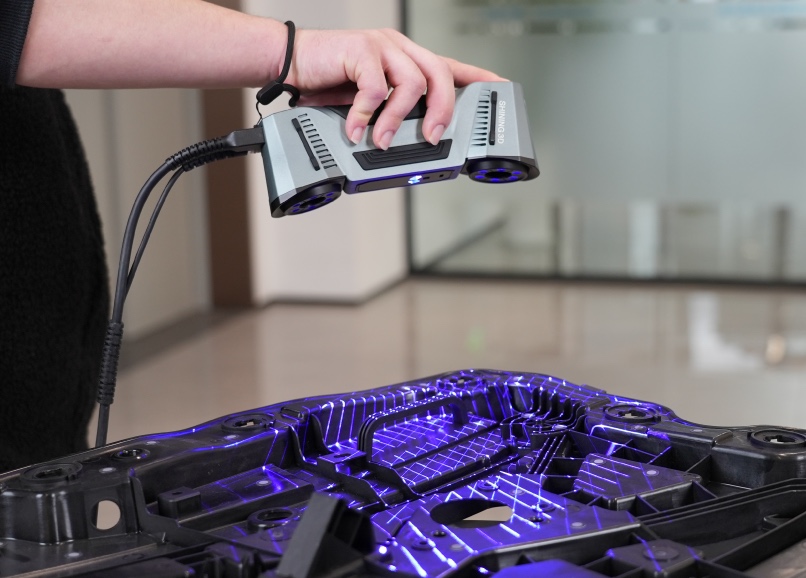

Powerful and Ergonomic

The FreeScan Combo Series features an ergonomic, compact, and lightweight design that makes 3D scanning convenient and easy.

The optimized camera angle allows for quick data capture in seams, making it more suitable for working in tight and complex environments.

Powerful and Ergonomic

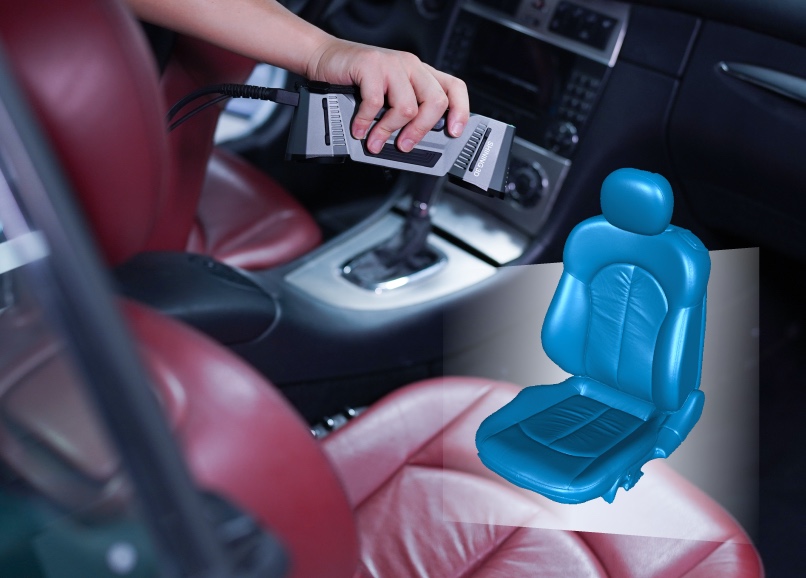

Infrared Light Scanning

Infrared Light Scanning

The infrared light scanning mode is ideal for feature-rich workpieces. It captures parts quickly and efficiently without the need for markers.

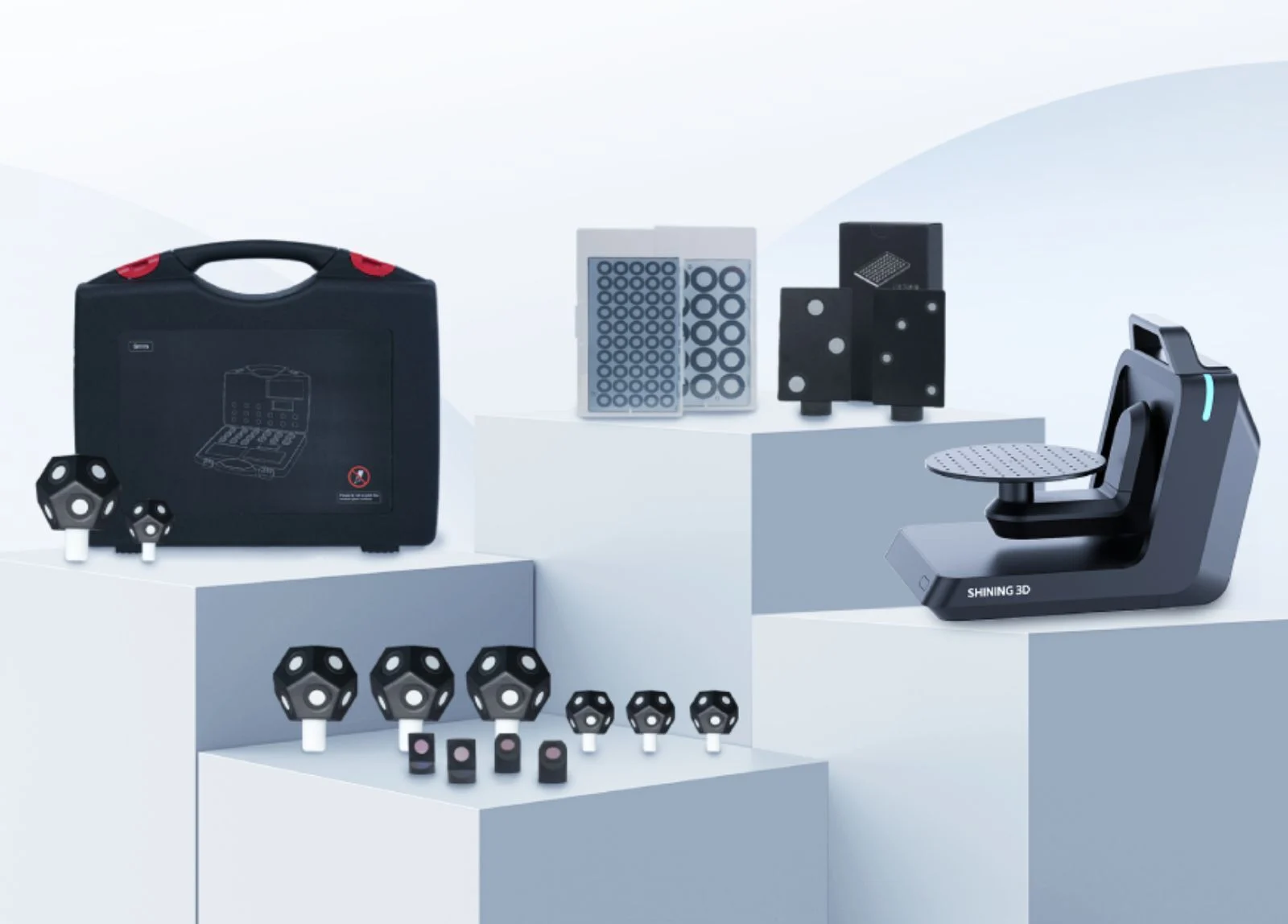

Metrology Kit

Magnetic marker balls for fast setup and easy positioning. The Metrology Kit is perfect for handheld laser 3D scanners with smooth scanning workflows.

Metrology Kit

What You Can Achieve with Our
Shining 3D FreeScan Combo Series Scanners

Explore how integrating our scanners into your workflow can increase efficiency and help you achieve remarkable results.

With high scanning speed, smoothness, and accuracy, the FreeScan Combo series can significantly increase scanning efficiency without losing precision. It is an ideal choice for scanning vehicle bodies for surface deviation analysis and detecting the positional accuracy of sheet metal holes. Additionally, it can scan without markers using the IR mode, which brings more scanning possibilities to the engine compartment and car chassis for redesign.

Energy, Heavy Industry, and Utilities

Metrology cameras, blue laser projector, and good portability allow the scanner to capture data accurately both indoors and outdoors. It is excellent at obtaining precise data for large objects such as water turbines and oil drill bits, facilitating deformation and damage detection.

Equipped with three laser line modes, good portability, and metrology-grade accuracy, the FreeScan Combo series allows you to scan efficiently and accurately in both indoor and outdoor environments. It is ideal for scanning body accessories and rails for railway crossings, as well as for inspection and reverse engineering.
